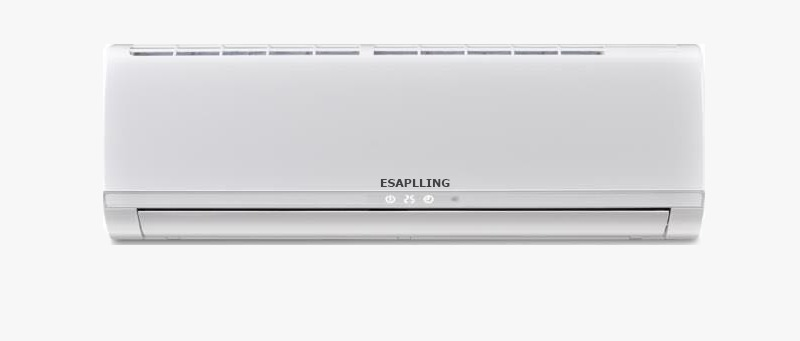

 Esappling Split ac


Model No: ESPS3M15E001
1.5(Ton) 3 Star



Features
Icon image

Parameter Unit 1.5(Ton)
Model --- ESPS3M15E001
Rated Voltage V ~ 220-240
Rated Frequency Hz 1
Phases -- 1
Power Supply Mode -- Indoor
Energy Rating -- Indoor
Cross-sectional Area of Power Cable Conductor mm2 2.5
Recommended Power Cable(Core) N 3
Min/Max. Voltage V 185/264
Cooling Capacity W 5275
Cooling Capacity Btu/h 18000
Cooling Power Input W 1700
Cooling Current A 7.6
Rated Input W 2445
EER W/W 3.10
EER (Btu/h)/w 10.59
Air Flow Volume m3/h 900/840/800/770
Air Flow Volume CFM 530/495/470/453
Dehumidifying Volume L/h 1.8
Dehumidifying Volume PINT/D 3.85
Application Area m2 27-42
Indoor Unit
Indoor Unit Model ESPS3M15E001-IDU
Fan Type -- Cross-flow
Fan Diameter Length(D×L) mm φ106×706
Cooling Speed r/min 1330/1200/1050/900
Fan Motor Power Output W 35
Fan Motor RLA A 0.33
Fan Motor Capacitor μF 2.5
Evaporator Form -- Evaporator Form
Evaporator Pipe Diameter mm φ7
Evaporator Row-fin Gap mm 2-1.4
Evaporator Coil Length (L×D×W) mm 715×25.4×304.8
Swing Motor Model -- MP35CJ
Swing Motor Power Output W 2.5
Fuse Current A 3.15
Set Temperature Range 16~31
Sound Pressure Level dB (A) 28/25/22/19
Dimension (W×H×D) mm 972x302x224
Dimension of Carton Box (L×W×H) mm 1044x304x374
Dimension of Package(L×W×H mm 1047x314x377
Stacked Layers - 7
Net Weight kg 13.5
Gross Weight kg 16.5
Outdoor Unit Model ESPS3M15E001-ODU
Compressor Trademark HITACHI
Compressor Manufacturer -- Shanghai Hitachi Electrical Appliances Co.,Ltd
Compressor Model -- ASH193TV-C7HQL
Compressor Oil -- α68HES-H or equivalent
Compressor Type -- Rotary
Compressor LRA. A 43
Compressor RLA A 7.2
Compressor Power Input W 1545
Outdoor Unit
Compressor Overload Protector -- Internal
Fan Type -- Axial-flow
Fan Diameter mm ¢405
Fan Motor Speed rpm 850
an Motor Power Output W 29
Fan Motor RLA A 0.3
Fan Motor Capacitor μF 2.5
Outdoor Unit Air Flow Volume m3/h 2000
Condenser Form -- Gold Fin- Copper Tube
Condenser Pipe Diameter mm φ7.94
Condenser Rows-fin Gap mm 2-1.4
Condenser Coil Length (L×D×W) mm 727×31×506
Permissible Excessive Operating Pressure for the Discharge Side MPa 4.3
Permissible Excessive Operating Pressure for the Suction Side MPa 2.5
Maximum Allowable Pressure MPa 4.3
Cooling Operation Ambient Temperature Range 18~48
Throttling Method -- Capillary
Climate Type -- T1
Climate Zone -- Temperate Zone
Isolation -- I
Moisture Protection -- IP24
Sound Pressure Level dB (A) 51
Sound Power Level dB (A) 61
Dimension (W×H×D) mm 830X540X325
Dimension of Carton Box (L×W×H) mm 876x585x363
Dimension of Package(L×W×H) mm 879x605x366
Stacked Layers -- 5
Net Weight kg 38.5
Gross Weight kg 41.5
Refrigerant -- R410A
Refrigerant Charge kg 1.26
Length m 5
Gas Additional Charge g/m 15
Outer Diameter of Liquid Pipe(SKYWORTH Allocation)(Metric) mm φ6
Outer Diameter of Liquid Pipe(British System Allocation inch 1/4"
Outer Diameter of Gas Pipe(SKYWORTH Allocation)(Metric) mm φ12
Outer Diameter of Gas Pipe(British System Allocation inch 1/2"
Max Distance Height m 10
Outer Diameter of Liquid Pipe(British System AllocationMax Distance Height ft 32.8
Outer Diameter of Liquid Pipe(British System Allocationft m 20
Max Distance Length ft 65.6
Loading Quantity( 20’ Container ) unit 87
Loading Quantity( 40’ Container ) unit 183
Loading Quantity( 40’ High Cube Container ) unit 211
Air Condition Function
Automatic Operation YES
Cooling YES
Heating YES
Dehumidify YES
Fan YES
Sleep Mode YES
Auto Swing(Vertical Auto Swing) YES
Auto Swing(Horizontal Auto Swing) NO
Auto Fan YES
Quiet YES
I Feel YES
Anion NO
Cold Plasma NO
Intelligent Preheating NO
Fresh Air NO
Dry Anti-Mildew Design YES
Several Optional Filters (eg:Active Carbon) NO
Intelligent Preheating NO
Auto Clean YES
Timer YES
Auto Restart YES
Turbo YES
Clock YES
Auto CleTemperaturean YES
Soft Start NO
Self Diagnosis YES
Lock YES
CO Detection NO
CO2 Detection NO
LockFilter Dirty Alarm YES
Intelligent Open-Close Panel YES
Compressor Electric Heater Function NO
Chassis Electric Heater Function NO
Quick Connector NO
LCD (No Back Light NO
LCD ( Back Light NO
LED YES
Intelligent Defrosting YES
Force Defrosting YES
Auxiliary Electrical Heater NO
Energy Saving YES
8℃ Heating Mode YES
Turbo Cooling YES
High-Voltage Electrostatic Dedust NO
Low Ambient Cooling YES
Voltage Startup NO
Standby YES
Multi Speeds YES
