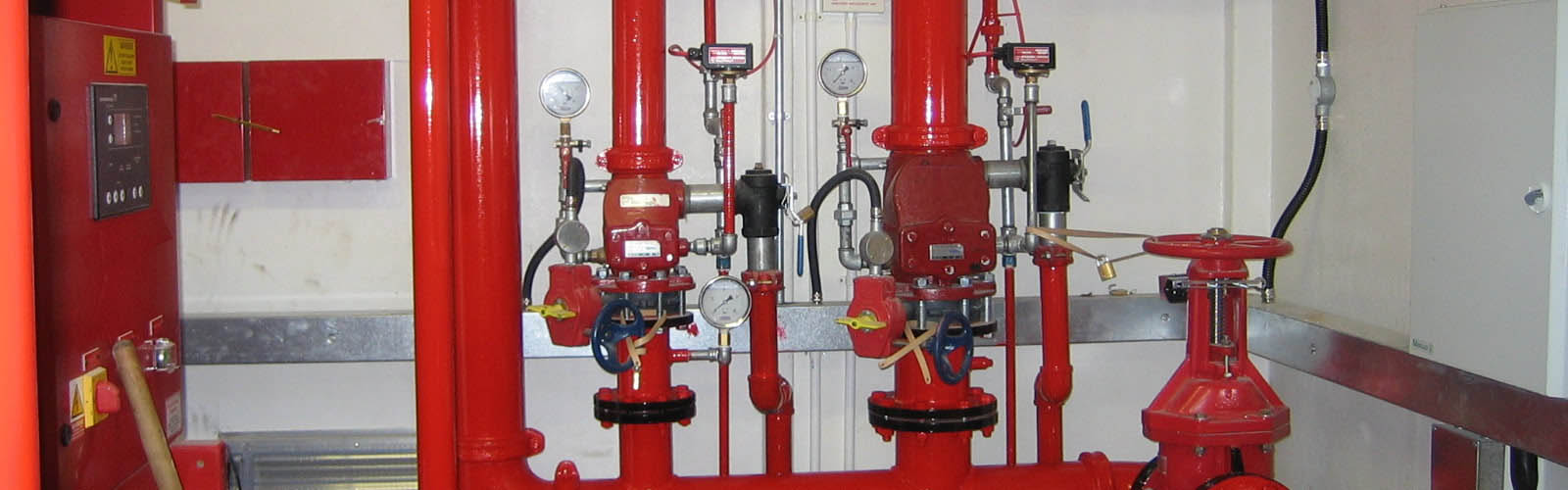

Esaplling plumbing & firefighting banner

Plumbing

Public Health Services

Water Supply:

 • To study and analyze basic data with respect to water requirement, consumption and storage including fire fighting needs with due consideration to existing /    future plans.
 • To prepare transmission line from specified water source to storage facilities.
 • Analyze water quality and determine need of water treatment.
 • If necessary design water treatment Capacity, with inlet & outlet parameter facilities depending upon water source.
 • Determine underground / overhead storage facilities.
 • Preparation of tender drawings and tender document. Releasing the same to the various contractors.
 • Design water distribution pipelines from storage tanks to various water consumption centers and / or Hydro pneumatic system.
 • Determine fire fighting water requirements and work out suitable storage.
 • Prepare bill of quantities for water supply components/piping.


Storm water / Rain Water Harvesting:

 • Study existing contour plan and determine economical alignment for storm water drainage system.
 • Collect data with respect to total rainfall, rainfall intensity, contributing area etc.
 • To prepare drawing of identified alignments for execution purpose.
 • To prepare drawings for appurtenances like inlet drain, chambers/ man holes etc.
 • Design / prepare storm water harvesting system for roof top as well as area drainage.
 • Prepare bill of quantities.


Drainage/ Sanitation:

 • Study existing contour plan and decide tentative pipeline alignment for sewage.
 • Study alignment survey details at site and prepare relevant drawings for laying sewer.
 • Prepare detailed specifications for piping system.
 • Prepare drawings for other work like manhole, flushing tank and bathroom/toilet/drawings etc.
 • Prepare bill of quantities.
 • Work out cost estimates for drainage system.


Fire Fighting:

 • To design and prepare Base drawings to include all aspects of fire fighting facilities such as underground and overhead water storage tanks, wet riser cum    down comer, hydrants, rose reel and hose box, sprinkler system design, main pump, sprinkler pump, booster pump, jockey pump design, pipe sizing, fire    alarm system etc. based on fire Provisional N.O.C.
 • To provide technical specifications for all the works to be done at site.
